Key Advantages：
• Quick response, accurate measurement, reliable values, easy to handle;
• Very weak signal can be measured, no polarization;
• Wide range, medium and high conductivity are easy to measure;
• Smooth surface, rare fouling, easy to clean;
• Automatic temperature compensation;
• PEEK, sturdy and durable, wide scope of application.
• Quick response, accurate measurement, reliable values, easy to handle;
• Very weak signal can be measured, no polarization;
• Wide range, medium and high conductivity are easy to measure;
• Smooth surface, rare fouling, easy to clean;
• Automatic temperature compensation;
• PEEK, sturdy and durable, wide scope of application.
| Item |
Technical Specification |
|---|---|
| Measurement Method | 4-electrodes AC drive |
| Range | 1uS/cm~100mS/cm |
| Resolution | 1uS/cm or 0.1mS/cm |
| Accuracy | 1%FS |
| Operating temperature |
0~45℃ |
| Storage Temperatur |
-10~50℃ |
| Min. Detection Limi |
0.3uS/cm |
| Warranty |
1 year |
| Depth |
IP68, 10m Max |
| Power |
DC 5~12V 15mA (normal) |
| Output |
RS485 and Modbus protocol |
| Material | POM, SS316,TA2, Nickel,PEEK |
| Dimension |
Length 186mm, diameter 22mm |
| Flow rat |
< 3 m/s |
| Response time |
Minimum 30s T90 |
| Field life* |
2 years or greater |
| Recommended Calibration maintain Frequency* |
3 months |

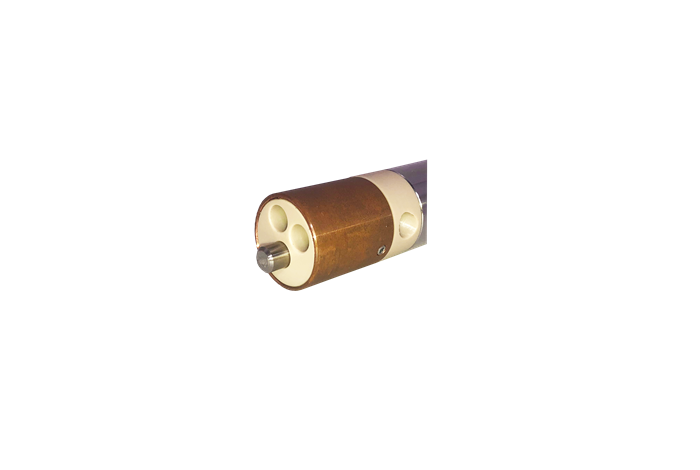

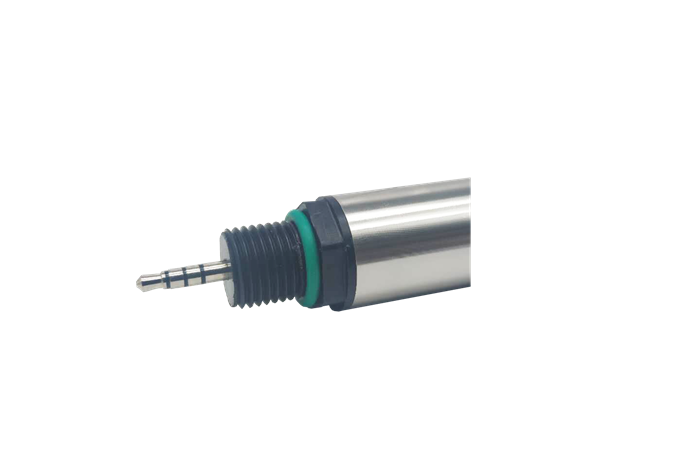

4-electrode Conductivity Sensor
PN: 630313
Conductivity sensor is widely used around power sector, chemistry industry, environmental protection field, food safety field and marine studies. Our sensor increases a pair of driven electrodes, which can effectively avoid deviation and drift caused by polarization of electrode. Besides, we designed the conductance cell inside the sensor, so the maintenance intervals are much longer.
