Key Advantages:
• Exposed 4-electrode with 316 or C22 conductivity cell, calibration parameters are stored in the sensor.
• mV class AC drive, better polarization resistance, smaller drift.
• RS485 output, Modbus protocol.
• Titanium shell, suitable for a variety of complex applications
• IP68 connector.
• Exposed structure, easy to clean.
• Output water temperature, conductivity and salinity, TDS simultaneously.
| Item |
Technical Specification |
|---|---|
| Measurement Method | 4-electrodes AC drive |
| Range | 1uS/cm~100mS/cm |
| Resolution | 1uS/cm or 0.1mS/cm |
| Accuracy |
±3% reading or ±0.2mS/cm w.i.g** |
| Operating temperature |
5~45℃ |
| Storage Temperature |
-10~50℃ |
| Min. Detection Limitation |
0.3uS/cm |
| Warranty |
1 year |
| Depth |
IP68 |
| Power |
DC5V 5% |
| Output |
RS485 and Modbus protocol |
| Material |
Titanium, 316 or C22, PEEK |
| Dimension |
Length 143mm(connector not included), diameter 16mm |
| Flow rate |
< 3 m/s |
| Response time |
Minimum 10s T90 |
| Field life* |
2 years or greater |
| Recommended Calibration maintain Frequency* |
3 months |
Note: *Field life and calibration frequency dependent on site conditions
**w.i.g which is greater

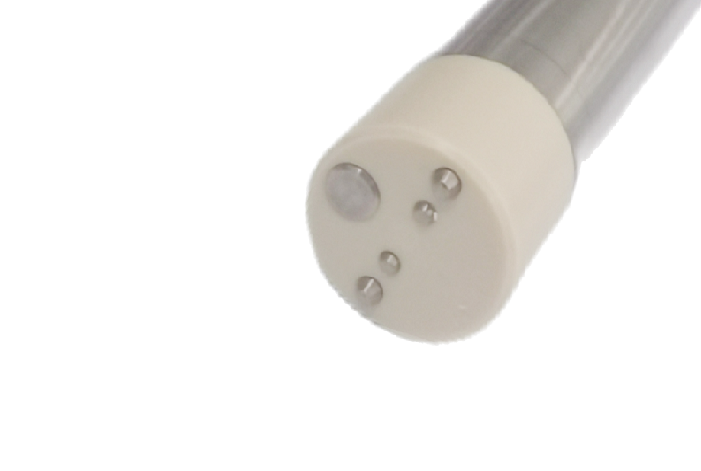

Online 4-electrode Conductivity sensor(diameter 16mm)
PN:630315
Broadsensor conductivity sensor measures conductivity by AC voltage applied to 316 or C22 electrodes. The sensor requires little maintenance or special attention for storage and can measure high conductivity water long-term.
