Key Advantages:
- Low drift
- Can be stored in the air
- Match up with BroadSensor's ODO sensor
| Item |
Technical Specification |
|---|---|
| Measurement Method |
luminescence quenching technique |
| Range | 0-20mg/L or 0-200% Air Sat. |
| Resolution | 0.01mg/ |
| Accuracy |
DO +/-0.3mg/L, Temperature +/-0.3℃（0~45℃） |
| Operating temperature |
0~45℃ |
| Storage Temperatur |
-10~50℃ |
| Min. Detection Limi |
0.05mg/L |
| Warranty |
1 year |
| Depth |
IP68, 10m Max |
| Power |
DC 5~12V 15mA (normal) |
| Output |
RS485 and Modbus protocol |
| Material |
Titanium, SS316(default), POM, Nylon |
| Dimension |
Length 170.5mm, diameter 22mm |
| Flow rat |
< 3 m/s |
| Response tim |
Minimum 45s T90 |
| Field life* |
Sensor 2 years or greater, sensor cap 1.5 years or greater |
| Recommended Calibration maintain Frequency* |
Sensor 6 months |

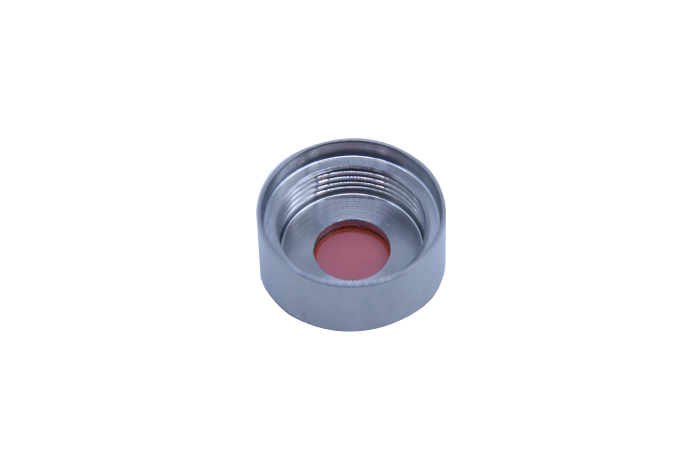

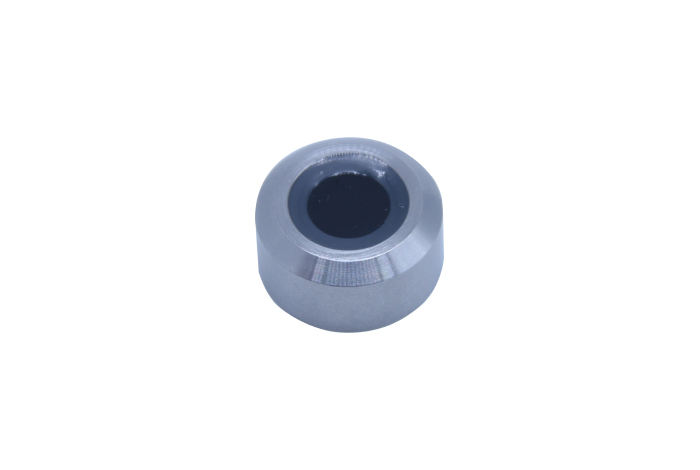

ODO Sensor Cap
710001
Online ODO sensor is widely used, so BroadSensor developed the fluorescent cap.Low drift and can be stored in the air
