Key Advantages:
• Smart sensor retains all calibration in the sensor
• Membrane-less, no electrodes design
• Flow Independent and No oxygen consumption
• No warm-up time required
• Easy to store
• User-replaceable sensor cap
• Low drift and long life time
• All made by Broadsensor, including fluorescent film
• Support salinity compensation
• Digital output, support RS485 Modbus protocol
| Item |
Technical Specification |
|---|---|
| Measurement Method |
luminescence quenching technique |
| Range | 0-20mg/L or 0-200% Air Sat. |
| Resolution | 0.01mg/L |
| Accuracy |
3% reading or 0.05mg/L, w.i.g |
| Operating temperature |
0~45℃ |
| Storage Temperatur |
-10~50℃ |
| Min. Detection Limi |
0.05mg/L |
| Warranty |
1 year |
| Depth |
IP68 |
| Power |
DC 5V 5% |
| Output |
RS485 and Modbus protocol |
| Material |
Titanium |
| Dimension |
Length 143mm, diameter 16mm |
| Flow rat |
< 3 m/s |
| Response tim |
Minimum 30s T90 |
| Field life* |
Sensor 2 years or greater, sensor cap 2 years or greater |
| Recommended Calibration maintain Frequency* |
Sensor 6 months |
Note: *Field life and calibration frequency dependent on site conditions
**w.i.g:which is greater

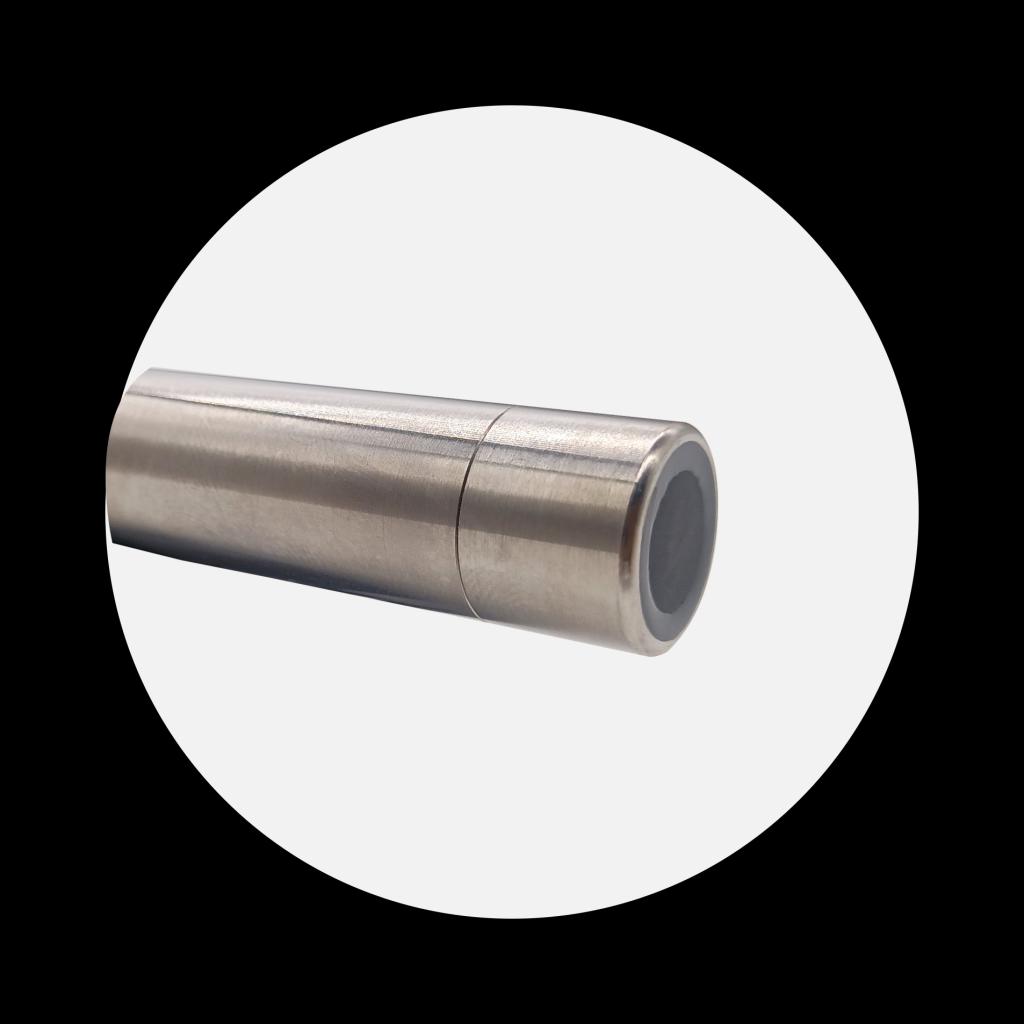

ODO sensor(16mm diameter)
descargasOptical Dissolved Oxygen Sensor(diameter 16mm)
PN:610116
The Broadsensor optical DO sensor(diameter 16mm) is coated
with a luminescent material. Blue Light from an LED strikes the
luminescent chemical on the sensor. The luminescent chemical
instantly becomes excited and then as the excited chemical relaxes,
it emit red light. The red light is detected by a photo diode. The
time it takes for the chemical to return to a relaxed state is
measured by referring an independent red led light. Oxygen has a
dampening effect on this reaction. The oxygen concentration is
proportional to the time it takes for the luminescent material to
return to a relaxed state.
