Key Advantages:
- Fluorescence method;
- Only a small distance from the obstacle is needed;
- Long time online monitoring;
- Calibration with rhodamine solution showed good linearity with blue-green algae.
| Item | Technical Specification |
|---|---|
|
Principle |
Fluorescence |
|
Range |
0.15~100ug/L |
|
Resolution |
0.01mg/L |
|
Accuracy |
R 2 >0.999 |
|
Temperature Range |
0 ~ 45℃ |
|
Storage Temperature |
-10 ~ 50℃ |
|
Min. Detection Limit |
0.15ug/L |
| Warranty | 1 year |
|
IP Rating |
IP68, <10m |
|
Power |
5V 5% |
|
Body Materials |
quartz glass,POM,316 |
| Diameter |
Φ22x187mm |
|
Flow rate |
< 3 m/s |
|
Response time |
Minimum 30s T90 |
|
Field life* |
Sensor 2 years or greater |
|
Recommended Calibration maintain Frequency* |
Sensor 6 months |

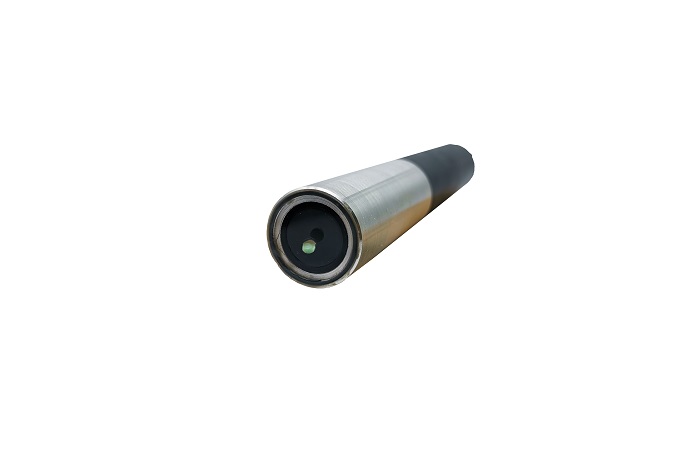

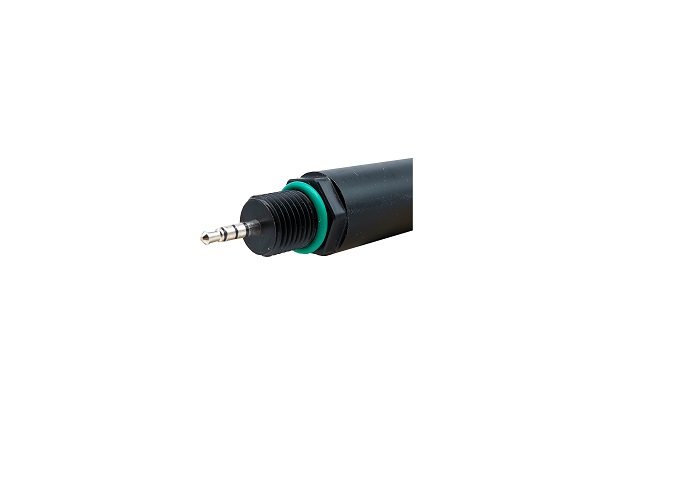

Online Blue-Green Algea Sensor
PN: 610611
The content of blue-green algae was monitored by fluorescence analysis. This method directly detects the fluorescent substances of specific pigments in the cells of blue-green algae to determine the relative blue-green algae. The sensor is IP68 waterproof and supports Modbus protocol. It can be widely used in rivers, lakes, drinking water sources and other fields.
