Key Advantages:
• Glass electrode pH sensor, a potassium chloride (KCl) solution.
• Using capillary fiber materials as junction materials.
• NTC10K inside, easy to use.
• User-replaceable pH electrode, reusable sensor base.
• RS485 output, Modbus protocol.
• IP68 connector.
| Item | Technical Specification |
|---|---|
|
Measurement Method |
pH Glass/Ag/AgCl Ref |
| Range | pH 0-14 |
|
Resolution |
0.01pH |
|
Accuracy |
±0.1 (Calibration temperature within ± 10℃,pH 4-10), others±0.2 |
|
Operating temperature |
0~45℃ |
|
Storage Temperature |
-10~50℃ |
|
Min. Detection Limit |
NA |
|
Warranty |
1 year(sensor base), 3 months (pH electrode) |
|
Depth |
IP68 |
|
Power |
DC 5V±5% |
| Materials |
PVC，TA |
| Dimensions |
Length 143mm(connector and glass bulb not included) ,
diameter 16mm |
|
Flow rate |
< 3 m/s |
|
Response time |
Minimum 45s T90 |
|
Field life* |
Sensor base 2 years or greater, electrode 8 months or greater |
|
Recommended Calibration maintain Frequency * |
4 weeks |
Online pH Sensor(dia
Click to DownloadOnline pH Sensor(diameter 16mm)

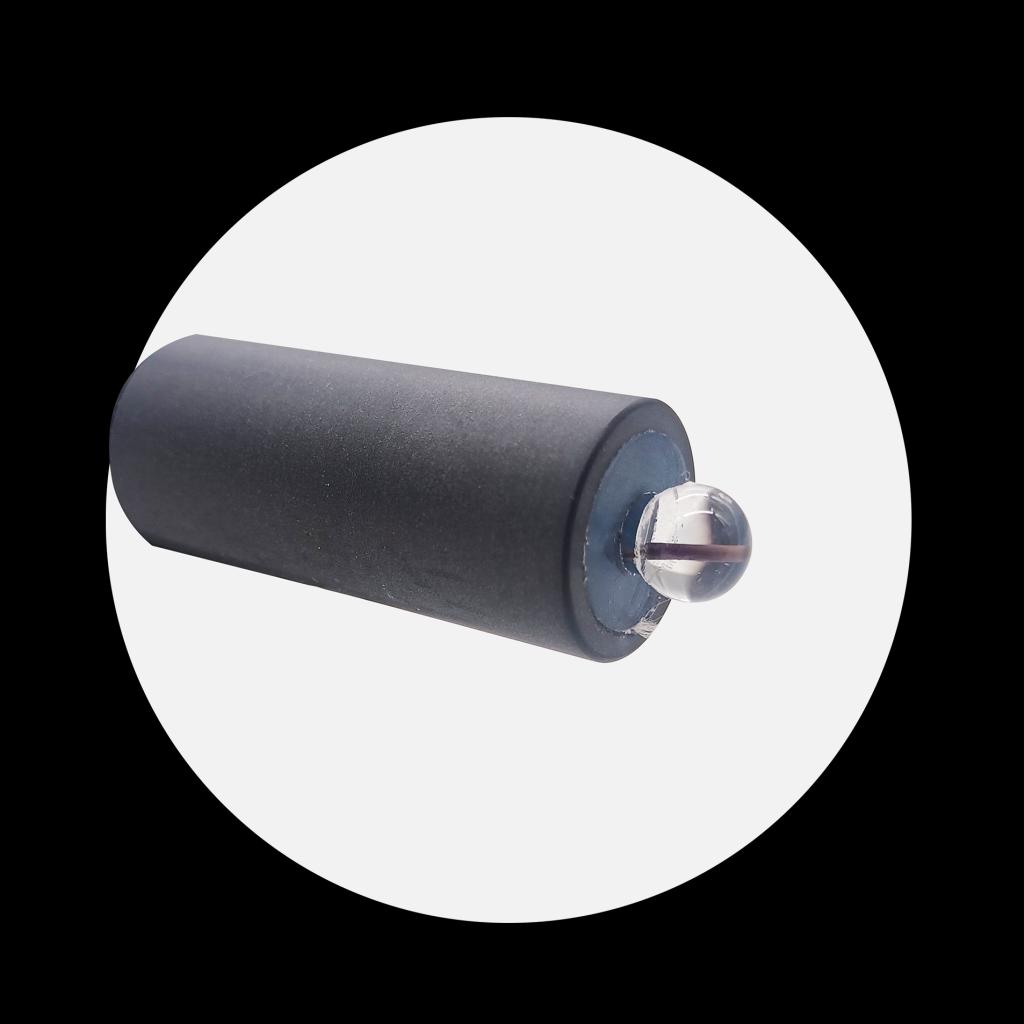

BroadSensor online pH Sensors with Integrated Digital Electronics for Plug and Play Capability with Broadsensor multi-parameter sonde and IP68 connector to any PLC. pH sensors have a unique design that incorporates a user-replaceable sensor tip (module) and a reusable sensor base that houses the processing electronics. This allows users to reduce the costs and easy to maintain.
