Key Advantages:：
•Fluorescence method;
•Fluorescence method;
•Long time online monitoring;
•Compared with HJ897-2017, the results have strong correlation and consistency.
| Item | Technical Specification |
|---|---|
|
Principle |
Fluorescence |
|
Interface |
RS-485, Modbus protocal |
|
Range |
0-400ug/L or 0-100RFU |
|
Resolution |
0.01mg/L |
|
Temperature Range |
0 ~ 50℃ |
|
IP rating |
IP68 |
|
Accuracy |
NA |
| Min. Detection Limit | 0.09ug/L |
|
Linearity |
R2>0.999 |
|
Power |
5-12V |
|
Body Materials |
PMMA,POM |
| Diameter |
Φ22x170.5mm |

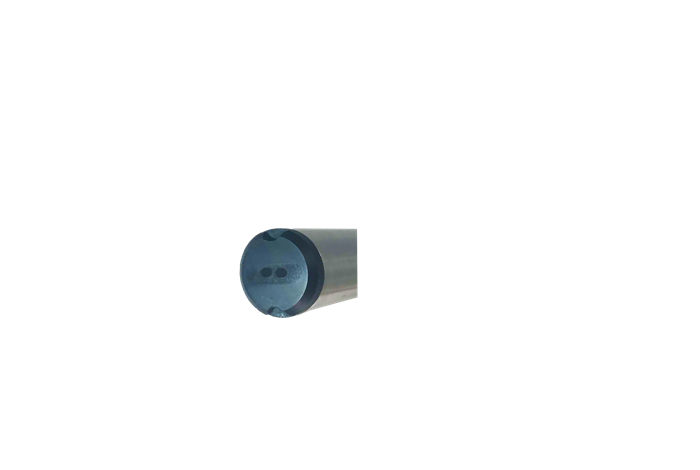

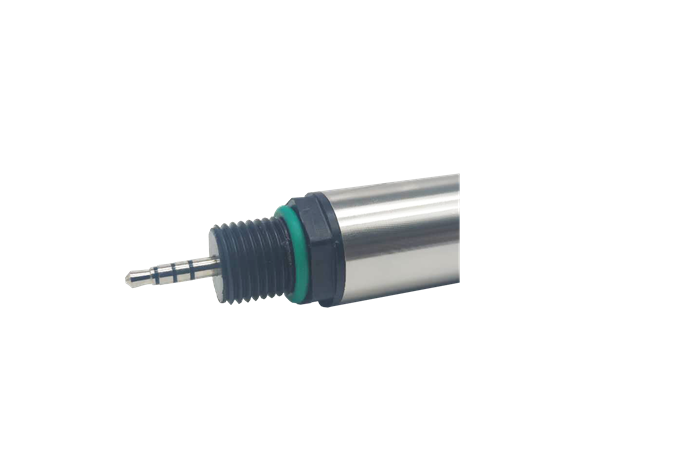

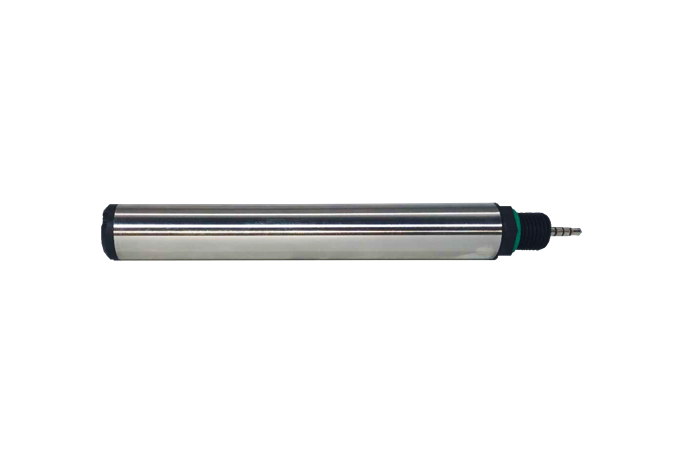

Online Chlorophyll Sensor
PN: 610511
Chlorophyll content was monitored by fluorescence analysis. This method directly detects the fluorescence of specific pigments in chlorophyll a cells, and to determine the relative chlorophyll content. The sensor is IP68 waterproof.
It supports Modbus. Can be widely used in rivers, lakes, drinking water source and other areas.
