Key Advantages:
• 2 wavelength absorption measurement: 254nm and 550nm for turbidity and color compensation.
• SAC measurement used to determine organic loading without reagents.
• Measurement directly in the process, no sample processing or reagent required.
• Fast response, minimum 10 second.
• Cold light source (UV LED) and rugged PD, long life time and low drift.
• Support leakage alarm
• Build in auto wiper sub-system prevents biofouling from taking place.
• 2 wavelength absorption measurement: 254nm and 550nm for turbidity and color compensation.
• SAC measurement used to determine organic loading without reagents.
• Measurement directly in the process, no sample processing or reagent required.
• Fast response, minimum 10 second.
• Cold light source (UV LED) and rugged PD, long life time and low drift.
• Support leakage alarm
• Build in auto wiper sub-system prevents biofouling from taking place.
| Item | Technical Specification |
|---|---|
|
Measurement Method |
Absorption measurement at 254 nm, DIN 38402 C2, DIN 38404 |
|
Range |
6mm cuvette gap 0.15~300mg/L equiv. KHP(COD solution)
2mm cuvette gap 0.5~1000mg/L equiv. KHP(COD solution) |
| Resolution | 0.1mg/L or 0.01mg/L COD |
|
Repeatability |
+/-1% FS equiv. KHP |
|
Operating temperature |
0~45℃ |
| Storage Temperature |
-10~50℃ |
|
Clean system |
Auto wiper system is optional |
|
Warranty |
1 year |
|
Depth |
IP68, 10m Max |
|
Power |
12V 15mA (normal), 200mA (Max) |
| Output |
RS485 and Modbus protocol |
|
Materials |
Titanium, SS316, POM, Nylon, PUR, quartz glass |
|
Dimensions |
Length 280mm, diameter 142x157mm |
|
Flow rate |
< 3 m/s |
|
Response time |
Minimum 10s T90 |
|
Field life* |
Sensor 3 years or greater, wiper sub-system 1.5 years or greater |
|
Recommended Calibration Frequency* |
Sensor 3 months, wiper sub-system inspection 6 months. |

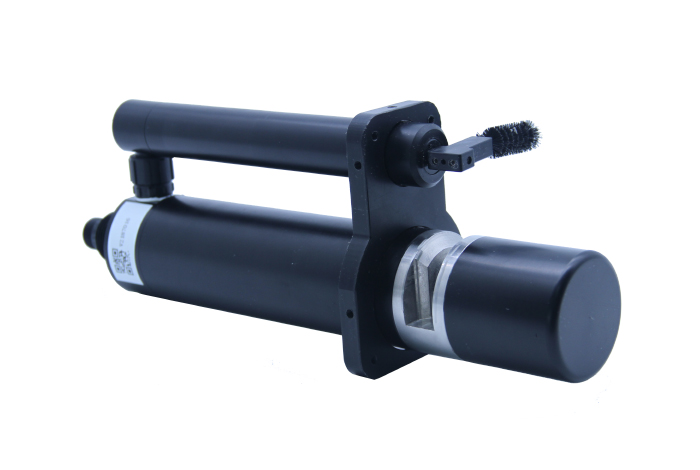

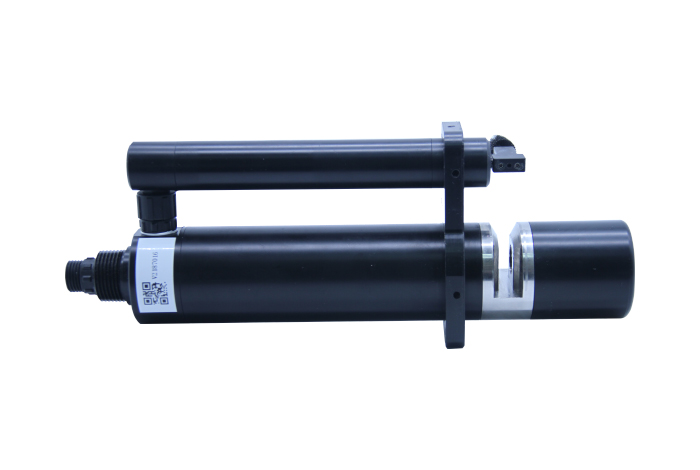

UV254 Double-Wave COD Sensor with Wiper
داون لودUV254 Double-Wave COD Sensor With Wiper
912120

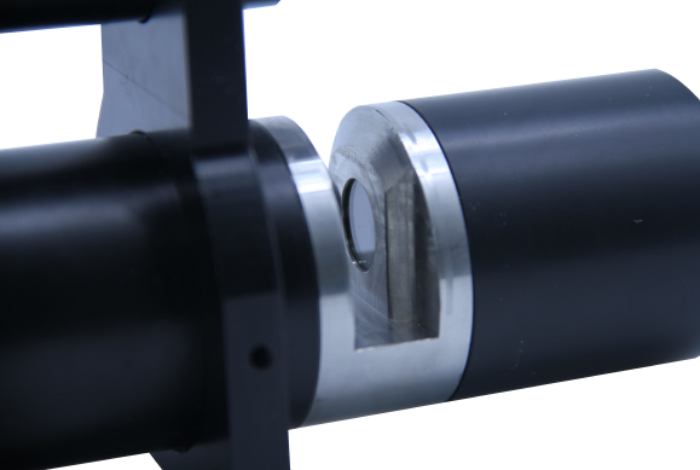

The BroadSensor UV254 sensor is an optical-based absorption and transmittance with UV LED and PD technology sensor. The sensor measures the absorption at 254nm and 550nm at the same time to compensate the SAC measurement for interferences from turbidity and color.
