Key Advantages:
- Smart sensor retains all calibration in the sensor
- Membrane less, no electrodes design
- Flow Independent and No oxygen consumption
- No warm-up time required
- Easy to store, air or water are all ok
- User-replaceable sensor cap
- Low drift and long life time
- All made by Broadsensor, including fluorescent film
- Support leakage alarm and salinity compensation
- Digital output, support RS485 Modbus protocol
- SS316, PVC, TA body are selectable
| Item |
Technical Specification |
|---|---|
| Measurement Method |
luminescence quenching technique |
| Range | 0-2000ppb(ODO) |
| Resolution | 0.1ppb |
| Accuracy |
± 1 ppb or 3% of the Reading (choose the bigger one) |
|
Repeatability |
± 0.5ppb or 1.5% of the reading ,choose the bigger one, in 24 hours |
| Operating temperature |
0~45℃ |
| Calibration | one point calobration(zero point)，in 99.999% nitrogen |
| Min. Detection Limit |
0.8ppb |
| Warranty |
1 year |
| Depth |
IP68, 10m Max |
| Power |
DC 5~12V 25mA (normal) |
| Output |
RS485 and Modbus protocol |
| Material |
Titanium, SS316(default), PVC |
| Dimension |
Length 141.9mm, diameter 27mm |
| CIP Cleaning |
support |
| Response tim |
30s T90 (in the air), 150s T90(in the liquid) |
| Field life* |
Sensor 2 years or greater, sensor cap 1.5 years or greater |
| Recommended Calibration maintain Frequency* |
Sensor 6 months |

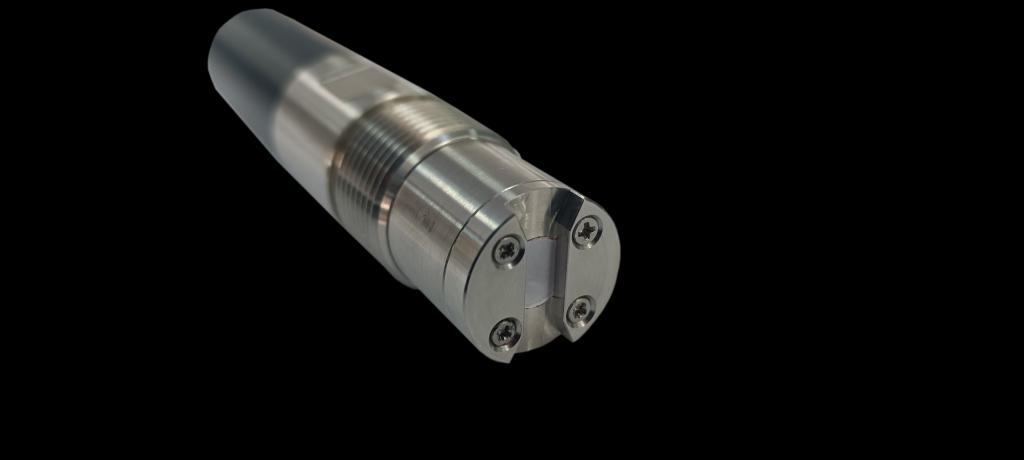

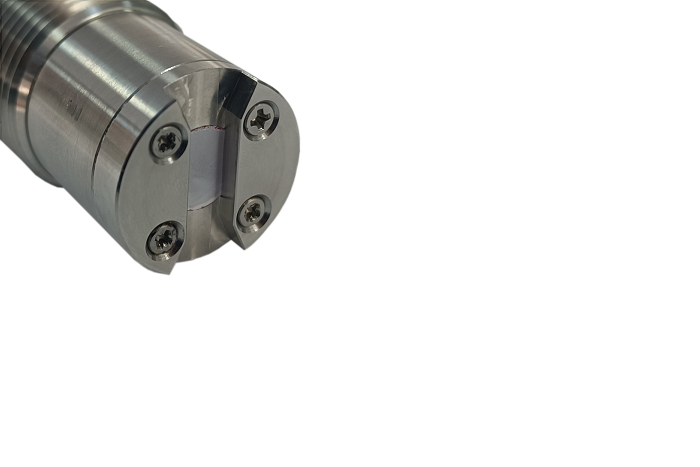

ppb class Optical Dissolved Oxygen Sensor
The Broadsensor ppb class optical DO sensor is coated with a luminescent material. Blue Light from an LED strikes the luminescent chemical on the sensor. The luminescent chemical instantly becomes excited and then as the excited chemical relaxes, it emit red light. The red light is detected by a photo diode. The time it takes for the chemical to return to a relaxed state is measured by referring an independent red led light. Oxygen has a dampening effect on this reaction. The oxygen concentration is proportional to the time it takes for the luminescent material to return to a relaxed state.
