Key Advantages:
• AC drive, better SN performance;
• UV LED , high stability, long life time, low drift;
• Customed professional optical instruments;
• Digital output, support RS485 modbus protocal.
• AC drive, better SN performance;
• UV LED , high stability, long life time, low drift;
• Customed professional optical instruments;
• Digital output, support RS485 modbus protocal.
| Item | Technical Specification |
|---|---|
|
Interface |
RS-485, Modbus protocal |
|
Range |
0-300ppb QSU |
|
Resolution |
0.01ppb |
|
Temperature Range |
0~50℃ |
|
IP Rating |
IP68 |
|
Accuracy |
5% FS |
|
Min. Detection Limit |
0.1ppb |
|
Linearity |
R2>0.999 |
|
Water-proof Rating |
IP68 |
|
Power |
5V-12V 5% |
| Body material |
316和POM |
| Diameter |
Φ22x170.5mm |

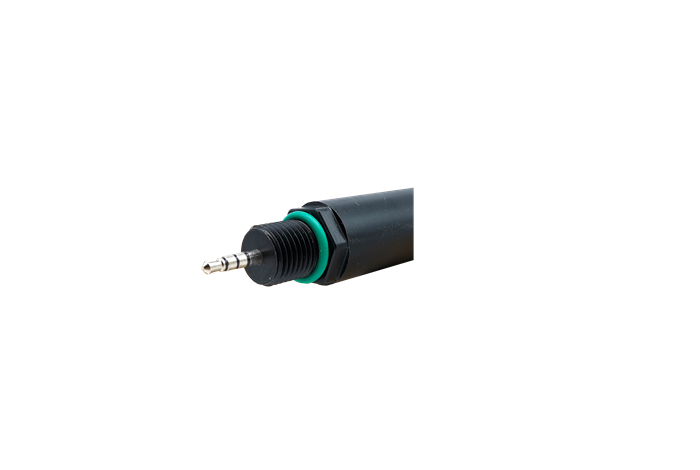

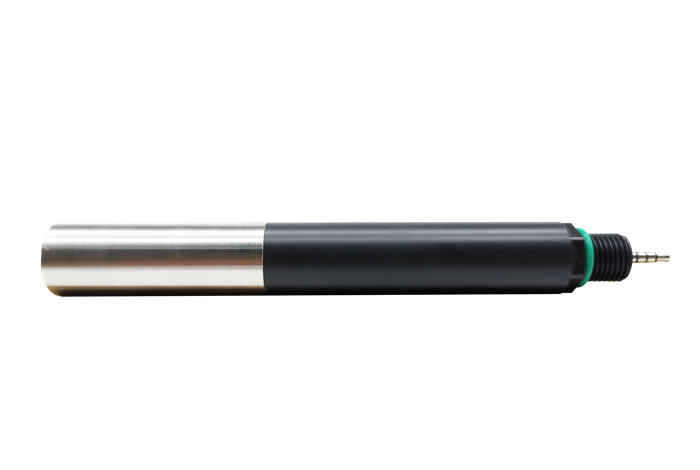

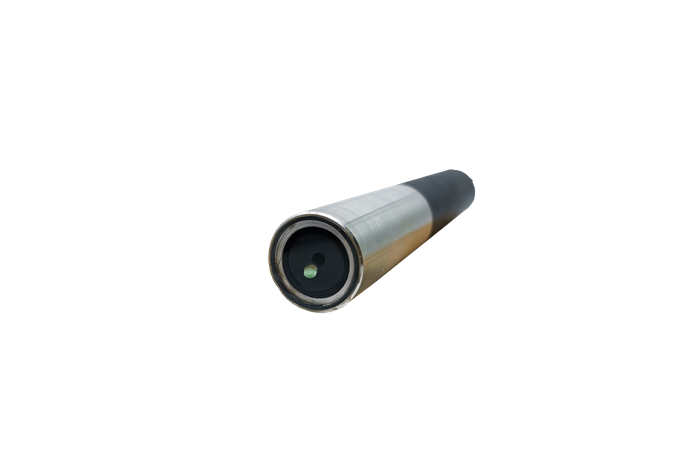

Online CDOM/fDOM Sensor
PN：611011
Principle:
• UV Fluorescence Method
• Excitation Wavelength: 360nm
• Emission: 460nm
