Key Advantages:
- Easy to use - support RS485 and Modbus protocol
- Easy to maintain - auto wiper system for antifouling for months, optical DO drift <1% per year, robust pH, ORP and reference electrode.
- Materials - Right housing materials for aquaculture
- Low cost - all made in China
- Strong technical capability - own all technologies including nano-materials, optical sensing and software algorithm
| Item | Technical Specifications |
|---|---|
|
Measurement Method |
DO: EPA-approved : 1002-8-2009, 1003-8-2009,1004-8-2009
pH:Std. Methods 4500-H+/EPA 150.2
ORP: Std. Methods 2580
|
| Range |
DO: 0-20mg/L Or 0-200% Sat., pH: 0-14,ORP: -1200~+1200mV, Temperature: -5~50℃ |
|
Resolution |
DO: 0.01mg/L Or 0.01% Sat., pH: 0.01, ORP: 1mV |
| Accuracy |
DO: +/-0.3mg/L Or 3% FS, pH +/-0.2@10~30℃, ORP +/-10mV, Temperature +/-0.3℃@5~50℃ |
|
Operating temperature |
0~45℃ |
|
Storage Temperature |
-10~50℃ |
|
Clean system |
Auto wiper system is optional |
|
Warranty |
1 year (pH and reference electrode 0.5 year) |
|
Depth |
IP68, 10m Max |
|
Power |
12V 60mA (normal) |
| Output |
RS485 and Modbus protocol |
| Materials |
Titanium( mariculture ) or SS316( freshwater aquaculture), POM, Nylon, PUR |
|
Dimensions |
Length 275mm, diameter 69mm, weight 0.8kg in air without cable |
|
Field life* |
DO 2 years or greater, pH and ORP 1 year or greater, temperature 2 years or greater, wiper system 1.5 year or greater |
|
Recommended Calibration Frequency* |
DO 6 months, pH and ORP 8-12 weeks, temperature 1 year, wiper system inspection 12 months. |
Note: *Field life and calibration frequency depend on site conditions.

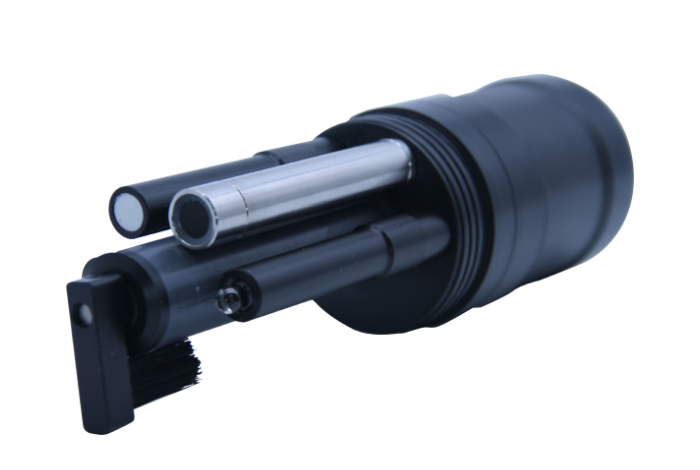

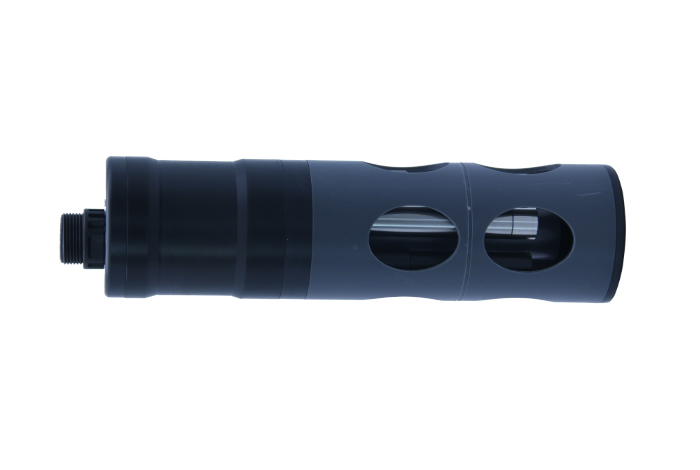

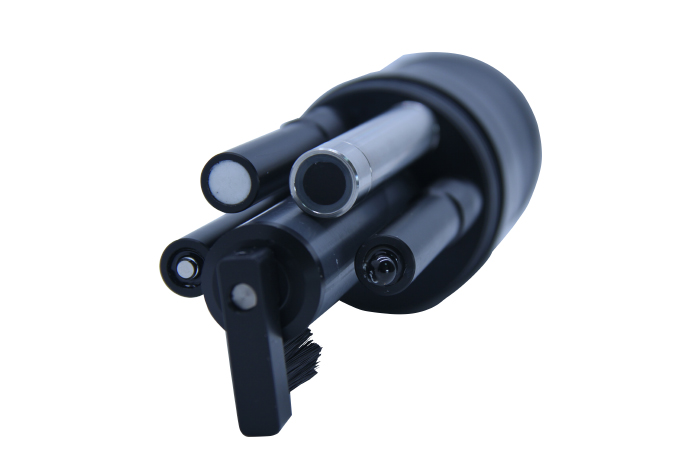

4 Parameters Sonde with Wiper- For Aquaculture
descargas4 Parameters Sonde with Wiper -For Aquaculture
The AQUA200 water platform is rugged in aquaculture water, delivering accurate, reliable data in an easy-to-use for end fisherman. Base sonde configuration includes optical dissolved oxygen(optical DO), pH, ORP, temperature and wiper system.
